Beyond Specifications: How Antenna Design and PCBA Layout Affect 4G CPE Router Performance

When choosing a 4G CPE router, most buyers focus on specifications such as LTE category, Wi-Fi speed, supported frequency bands, network interfaces, and price.

These specifications are important, but they do not tell the whole story.

What happens inside a router can be just as important as what appears on its product datasheet. Antenna selection, RF layout, component placement, electromagnetic interference control, and thermal management all contribute to the overall design quality of a 4G CPE router.

At SmileMBB, we pay close attention to these details when developing and manufacturing cellular connectivity products. Our XMC1841 4G CPE provides a practical example of how antenna design and PCBA engineering are incorporated into product development.

1. Antenna Design: A Key Part of Wireless Connectivity

Antennas are the bridge between a router and the wireless networks it connects to. Their design and integration can influence signal reception, transmission efficiency, Wi-Fi coverage, and the consistency of the user experience.

However, antenna performance depends on more than antenna gain alone. Antenna type, operating frequency, placement, surrounding materials, matching, and RF tuning all need to be considered as part of the overall design.

Wi-Fi Antenna Design

For a 4G CPE router, the Wi-Fi antenna system affects how the device distributes wireless connectivity to connected phones, computers, smart TVs, and other devices.

PCB antennas can offer a compact and integrated solution for product designs where space utilization and internal layout are important. Their performance depends on the antenna geometry, PCB design, ground plane, enclosure, and tuning process.

LTE Antenna Design

LTE antennas are responsible for communication between the router and the cellular network. Their design must take the supported frequency bands and the available internal space into account.

A well-integrated LTE antenna system requires careful placement and RF tuning. The goal is to support reliable cellular communication while accounting for the practical limitations of the product enclosure and internal components.

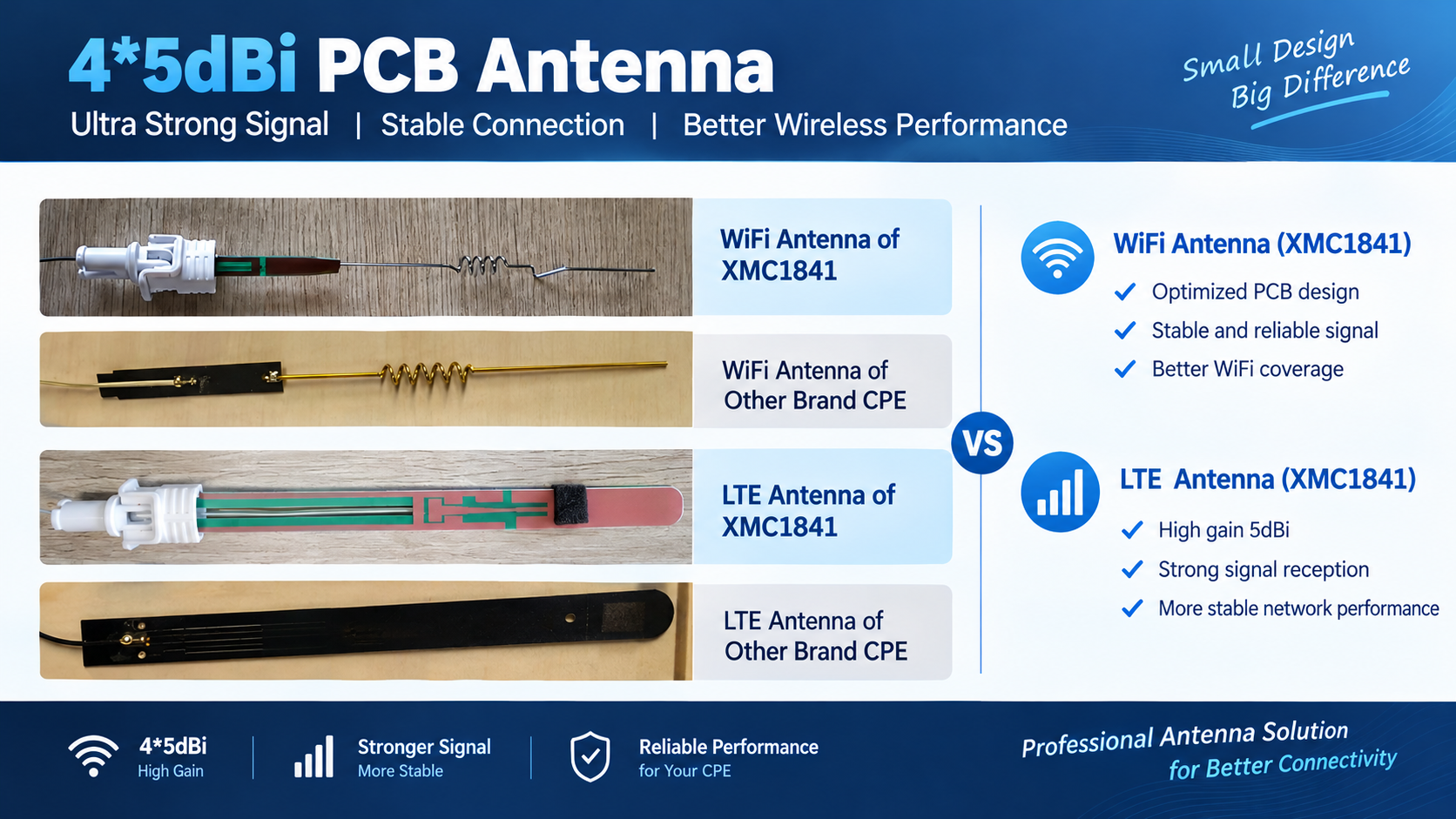

Four 5 dBi PCB Antennas in the XMC1841 Design

The XMC1841 4G CPE incorporates a design featuring four 5 dBi PCB antennas to support its wireless connectivity requirements.

Antenna specifications alone, however, cannot fully predict real-world performance. The complete antenna system, RF matching, product enclosure, and surrounding environment also matter.

This is why antenna selection should be evaluated together with the overall hardware design rather than treated as an isolated component decision.

2. PCBA Layout: Small Design Decisions Matter

A printed circuit board assembly (PCBA) does much more than connect electronic components. Its layout determines how power, signals, RF paths, and heat are managed inside the device.

For a cellular router, an organized PCBA design helps engineers manage potential interference sources and maintain appropriate separation between different functional circuits.

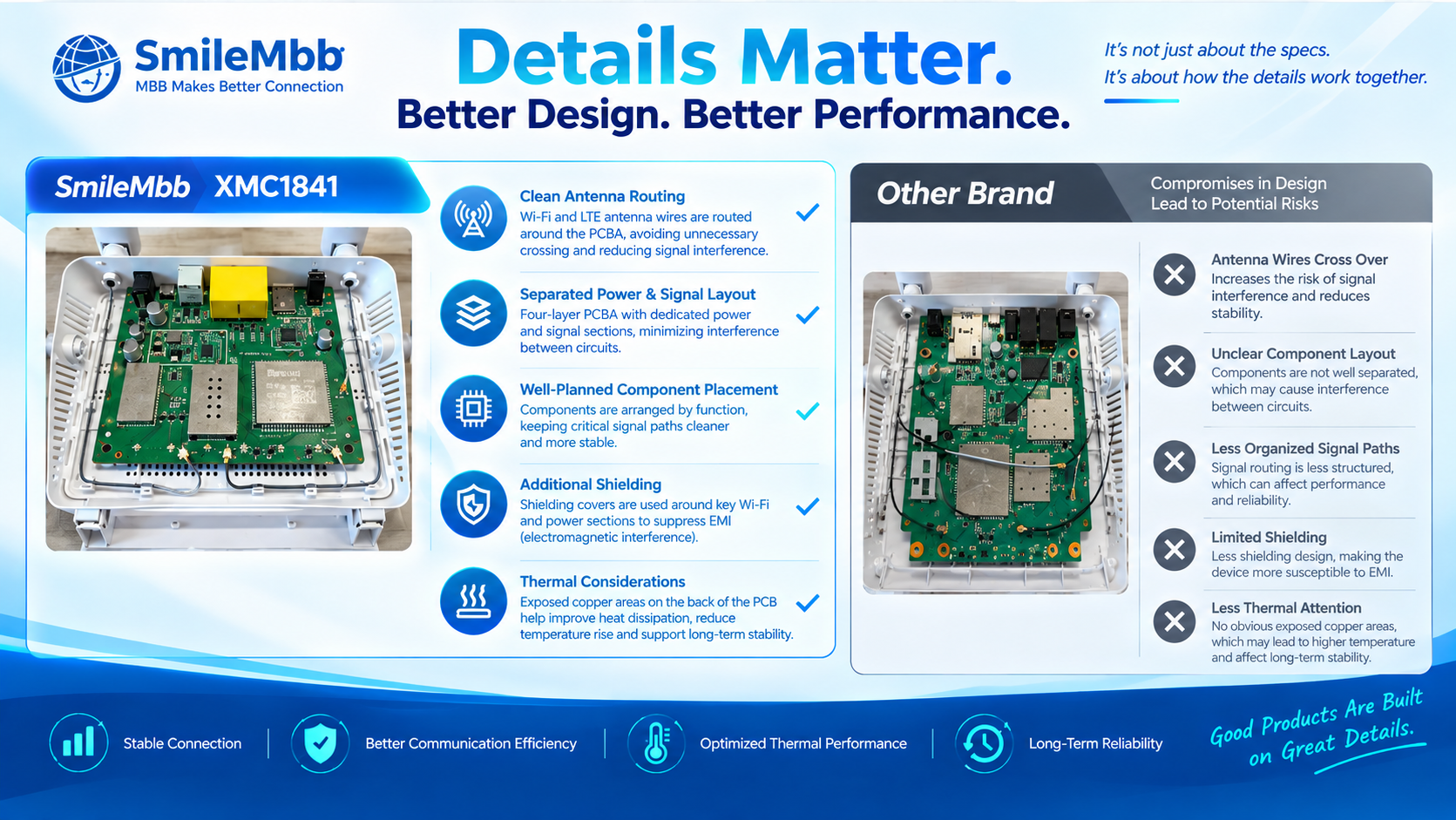

In the XMC1841, several design considerations contribute to the overall hardware architecture.

Organized Antenna Routing

Antenna cables and RF paths need to be routed with care. Unnecessary crossings, poor routing geometry, or inappropriate proximity to noise sources can affect RF performance.

Planning antenna routing around the PCBA helps create a more organized internal layout and supports efforts to minimize potential interference.

The final result still depends on RF measurements, antenna matching, and testing within the complete product.

Four-Layer PCBA Design

The XMC1841 uses a four-layer PCBA design, allowing the board layout to accommodate different signal, power, and grounding requirements.

A multilayer PCB provides greater flexibility for arranging signal paths and reference planes. With appropriate stack-up design and routing practices, engineers can better manage signal integrity, power distribution, and electromagnetic compatibility.

The number of PCB layers alone does not guarantee better performance. What matters is how effectively the layers are designed and integrated into the overall circuit architecture.

Functional Component Placement

Component placement is another important part of hardware engineering.

Power supply circuits, RF-related components, high-speed signals, and other functional sections have different layout requirements. Thoughtful placement and routing can help reduce unwanted coupling and make the design easier to validate during testing.

For a compact 4G CPE, these decisions must also account for enclosure dimensions, antenna positions, connector locations, and manufacturing requirements.

3. EMI Shielding: Managing Unwanted Interference

Electronic circuits can generate electromagnetic noise that may affect nearby circuits if the design does not manage it appropriately.

Shielding covers can help reduce electromagnetic coupling around selected circuit sections when they are properly designed and grounded.

In the XMC1841, shielding is applied around key Wi-Fi and power supply sections as part of the hardware design.

Shielding is not a substitute for good PCB layout. Its effectiveness depends on factors such as shield geometry, grounding, frequency, and the surrounding circuit design. It works best as part of a broader electromagnetic compatibility strategy that includes appropriate component selection, routing, filtering, and validation.

For manufacturers developing cellular routers, considering EMI early in the design process can help reduce the risk of problems emerging during product testing.

4. Thermal Management and Long-Term Operating Stability

Heat is another important consideration in compact networking devices.

Processors, power management components, and other active circuits generate heat during operation. If thermal conditions are not properly managed, elevated temperatures can affect component performance and long-term reliability.

The XMC1841 PCBA incorporates exposed copper areas on the back of the PCB around selected functional sections to support heat dissipation.

Thermal performance depends on the complete design, including copper area, board thickness, component power consumption, thermal interfaces, enclosure materials, and ventilation.

For this reason, thermal design should be considered alongside electrical and mechanical engineering rather than addressed only after the hardware is completed.

Appropriate thermal evaluation helps engineers understand how the product behaves under its intended operating conditions.

5. Why These Details Matter to 4G CPE Brands

For brands developing their own 4G CPE products, hardware design quality can influence more than initial performance.

A well-engineered design can help support:

• Wireless connectivity: Antenna integration and RF tuning designed around the product's intended operating bands and use cases.

• Signal integrity: Appropriate PCB stack-up, routing, grounding, and component placement.

• Electromagnetic compatibility: A coordinated approach to layout, filtering, shielding, and validation.

• Thermal performance: Consideration of heat generation and dissipation under expected operating conditions.

• Manufacturing consistency: A hardware design that can be validated, manufactured, and tested using repeatable processes.



These factors are particularly relevant when a product will be deployed in different environments or sold under a brand's own name.

At the same time, no single design feature can guarantee superior performance. Antenna gain, PCB layer count, shielding, and thermal design must be evaluated together, and their benefits should be verified through appropriate engineering tests.

6. How SmileMBB Approaches 4G and 5G CPE Development

At SmileMBB, we develop and manufacture 4G/5G CPE routers and MiFi devices for brands and business customers.

Our engineering approach considers the product as a complete system, from PCBA design and antenna integration to thermal considerations, testing, and manufacturing.

Depending on the project, our OEM/ODM support can include:

• Product configuration and hardware customization

• Antenna selection and integration

• PCBA and enclosure design coordination

• Brand logo and product appearance customization

• WebUI and other project-specific customization, subject to technical requirements

• Product validation and manufacturing support



The exact scope depends on the product platform, project requirements, and customization plan.

For brands evaluating a new 4G CPE router or planning to expand an existing product portfolio, working with a manufacturer that understands both product engineering and manufacturing can help create a clearer path from concept to production.

Conclusion: Better Connectivity Starts with Better Engineering

The quality of a 4G CPE router cannot be judged by its specifications alone.

Antenna design, PCBA layout, RF integration, EMI management, and thermal considerations all contribute to the engineering foundation of the final product.

With the XMC1841, SmileMBB applies these considerations as part of its approach to 4G CPE development and manufacturing.

Because meaningful product quality is not created by one component or one specification. It comes from the combination of thoughtful design, careful engineering, appropriate testing, and consistent manufacturing.
