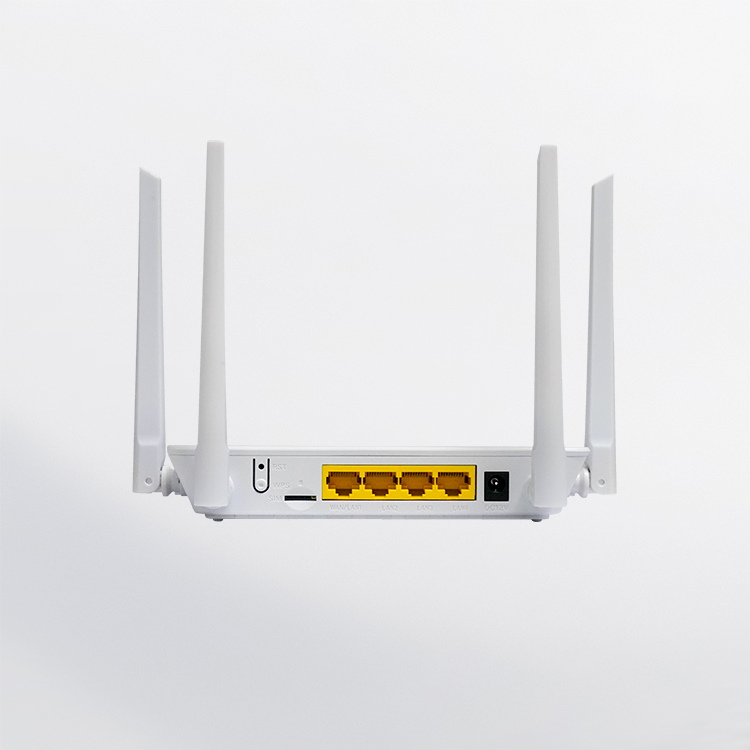

4-port for Multi-user AccessIt provides four 100 Mbps Ethernet ports for simultaneous wired connection of 3~4 hosts
Telecom-grade All-around ProtectionHigh-performance firewall configuration with Port Filtering/ Port Mapping support.
Multi-application Scenarios
|
Technical parameter |
|
|
Chip Platform |
ASR1803L (512Mbit+128Mbit) |
|
Frequent Band |
XMC1843e-EU： LTE-FDD：B1/B3/B5/B7/B8/B20/B28 LTE-TDD：B38/B40/B41 WCDMA：B1/B5/B8 XMC1843e-AU： LTE-FDD：B1\B2\B3\B4\B5\B7\B8\B28\B66 LTE-TDD：B40 WCDMA：B1\B2\B4\B5\B8 |
|
Protocol Version |
4G: 3GPP R9 Cat4 + 3G: 3GPP R7 |
|
Data Rate |
FDD：DL/UL up to 150Mbps/50Mbps, TDD：DL/UL up to 110Mbps/10Mbps 3G: DL/UL up to 21Mbps/5.76Mbps |
|
WiFi Standard |
802.11b/g/n, 2*antenna, 72.2 Mbps |
|
Size |
150*105*30mm |
|
Weight |
About 233g |
|
Power Supply |
DC 12V/0.5A |
|
Interfaces |
4FE+USIM+WiFi |
|
Indicators |
POWER, WiFi, WAN/LAN, DATA , LTE |
|
Button |
Reset/WPS |
|
Characteristics |
TR069/FOTA |
|
Technical parameter |
|
|
Chip Platform |
ASR1803L (512Mbit+128Mbit) |
|
Frequent Band |
XMC1843e-EU： LTE-FDD：B1/B3/B5/B7/B8/B20/B28 LTE-TDD：B38/B40/B41 WCDMA：B1/B5/B8 XMC1843e-AU： LTE-FDD：B1\B2\B3\B4\B5\B7\B8\B28\B66 LTE-TDD：B40 WCDMA：B1\B2\B4\B5\B8 |
|
Protocol Version |
4G: 3GPP R9 Cat4 + 3G: 3GPP R7 |
|
Data Rate |
FDD：DL/UL up to 150Mbps/50Mbps, TDD：DL/UL up to 110Mbps/10Mbps 3G: DL/UL up to 21Mbps/5.76Mbps |
|
WiFi Standard |
802.11b/g/n, 2*antenna, 72.2 Mbps |
|
Size |
150*105*30mm |
|
Weight |
About 233g |
|
Power Supply |
DC 12V/0.5A |
|
Interfaces |
4FE+USIM+WiFi |
|
Indicators |
POWER, WiFi, WAN/LAN, DATA , LTE |
|
Button |
Reset/WPS |
|
Characteristics |
TR069/FOTA |
