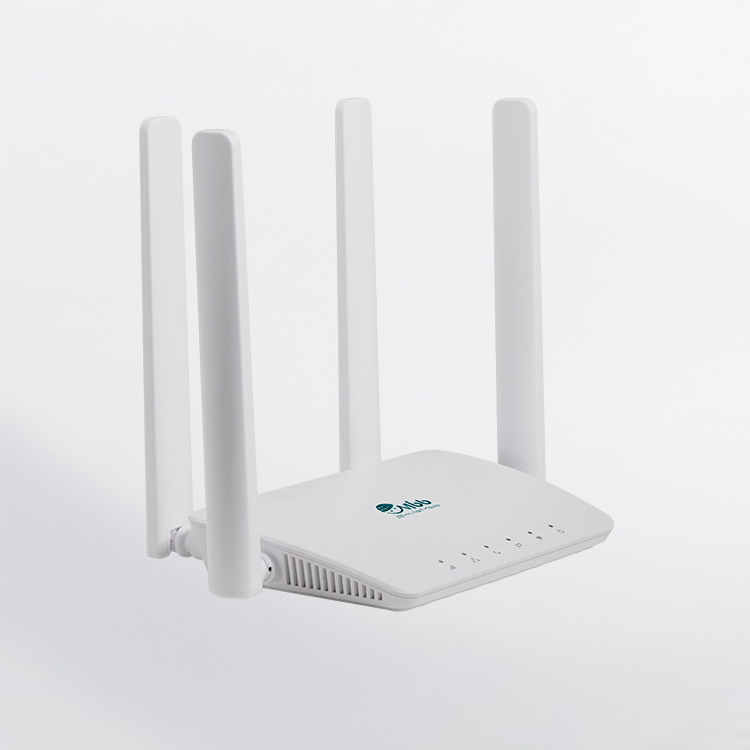

Equipped with the latest WIFI 6 technology and 4*5G antennas, it boasts a peak download speed of 2.6Gbps.
Equipped with Gigabit Ethernet port and VoLTE/VoNR port, fully compatible with 3G/4G/5G, covering SA and NSA.
|
Technical parameter |
||
|
Product Name |
XMC5151 |
XMC5151e |
|
Chip Platform |
UDX710 |
|
|
Network Mode |
NSA&SA |
|
|
Frequency Bands |
5G NR NSA: n1/n3/n7/n20/n28/n38/n40/n41/n77/n78 5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n66/n77/n78 FDD LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66 TDD LTE: B38/B40/B41 WCDMA:B1/B2/B5/B8 |
5G NR NSA: n1/n3/n7/n20/n28/n38/n40/n41/n77/n78 5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n66/n77/n78 FDD LTE:B1/B2/B3/B4/B5/B7/B8/B20/B28/B66 TDD LTE: B38/B40/B41 WCDMA:B1/B2/B5/B8 |
|
Protocol Version |
3GPP Release 15 |
|
|
Antennas |
External 4*5G antenna , Built-in WiFi antenna, 2.4Ghz：1*1 SISO, 5.8Ghz：1*1 SISO |
External 4*5G antenna , Built-in WiFi antenna, 2.4Ghz：1*1 SISO |
|
LTE+5G EN-DC Peak Data Rate |
5G: NSA: 2.6 Gbps (DL)/650 Mbps (UL); SA: 2 Gbps (DL)/1 Gbps (UL) LTE: Cat 12 (DL)/Cat 13 (UL); 600 Mbps (DL)/150 Mbps (UL) WCDMA: 3GPP-R9 DC-HSDPA: 42.2 Mbps (DL)/HSUPA: 11 Mbps (UL); WCDMA: 384 kbps (DL)/384 kbps (UL) |
5G: NSA: 2.6 Gbps (DL)/650 Mbps (UL); SA: 2 Gbps (DL)/1 Gbps (UL) LTE: Cat 12 (DL)/Cat 13 (UL); 600 Mbps (DL)/150 Mbps (UL) WCDMA: 3GPP-R9 DC-HSDPA: 42.2 Mbps (DL)/HSUPA: 11 Mbps (UL); WCDMA: 384 kbps (DL)/384 kbps (UL) |
|
Wi-Fi Standard |
802.11b/g/n/ac/ax; WIFI 6 5.8GHz 1*1 SISO 802.11ax, 80MHz:Up to 600.5 Mbps |
802.11b/g/n/ac/ax, 40MHz; WIFI 6 2.4GHz 1*1 SISO 802.11ax: 286.8 Mbps |
|
Size |
150*105*30mm |
|
|
Power Supply |
12V/1.5A |
|
|
Physical interface |

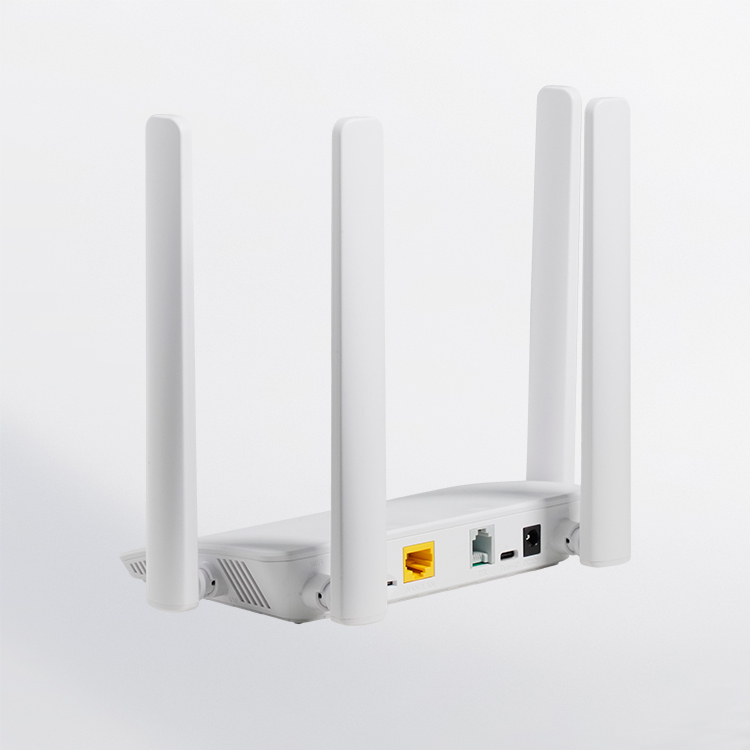

1 x GE WAN/LAN Port, 1 x Type C I/F Port, 1 x RJ11 Port, 1 x SIM Card (4FF NANO), 1 x DC Power Supply (12V/1.5A) |
|
|
LED |
Power indicator (white), WiFi indicator (white), 5G network indicator (white), WAN/LAN indicator (white), RJ11 indicator (white), 3G/4G/5G network indicator (white) |
|
|
Button |
Reset/WPS, Restore Factory Settings or active WPS |
|
|
Characteristic |
APN management; IPv4/IPv6; VPN Pass through contains IPSecVPN，PPTP VPN，L2TP VPN; DHCP Server, Dynamic IP, Static IP; UPnP, DMZ; Firewall:PORT Filtering/ Port Mapping/ Port Forwarding; DDNS, NAT, USSD; Traffic Control (IP QoS); Access Control, Local Management |
|
