Technical parameter |
|
|
Chip Platform |
Makalu Ivy510 |
|
Network Mode |
NSA&SA |
|
Frequent Band |
LTE：B1/B2/B3/B4/B5/B7/B8/B20/B28/B38/B40/B41/B66 WCDMA: B1/B2/B5/B8 |
|
Protocol Version |
3GPP Release 15 |
|
Antennas |
Built-in high-performance full frequency 5G antenna, 2T4R Built-in high-performance WiFi antenna: 2.4G: 2T2R, 5G: 2T2R |
|
LTE+5G EN-DC Peak Data Rate |
5G SA Sub-6G: DL 2Gbps, UL 1Gbps 5G NSA SUB-6G: DL 2.2Gbps, UL 575Mbps 4G LTE: DL 600Mbps, UL 150Mbps |
|
WiFi Standard |
802.11a/b/g/n/ac/ax |
|
Size |
112*110*224mm |
|
Power Supply |
12V/2A |
|
Physical Interface |
1×10/100/1000Mbps WAN Port, 2×10/100/1000Mbps LAN Port, 1×USB 2.0 Port,1×NANO USIM card Port,1×DC power Port |
|

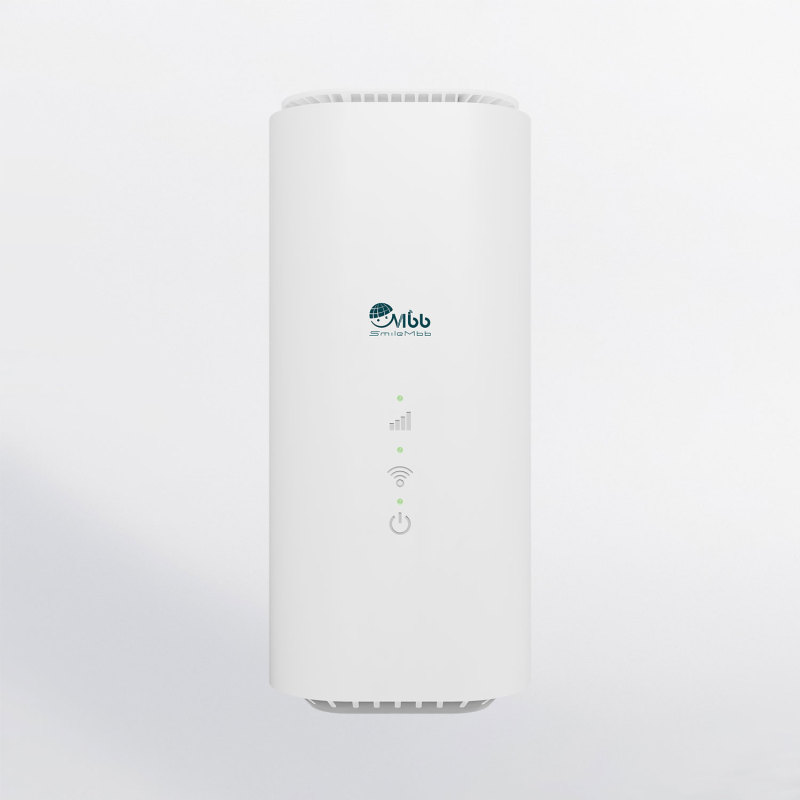

LED |
Power indicator (blue), WiFi indicator (blue and green), 5G networking indicator (tricolor), 4G networking indicator (tricolor) |
|
Button |
Power, Reset, WPS |
|
Characteristic |
VPN Pass-Through Support (PPTP, L2TP), Firewall, TR069/FOTA |
