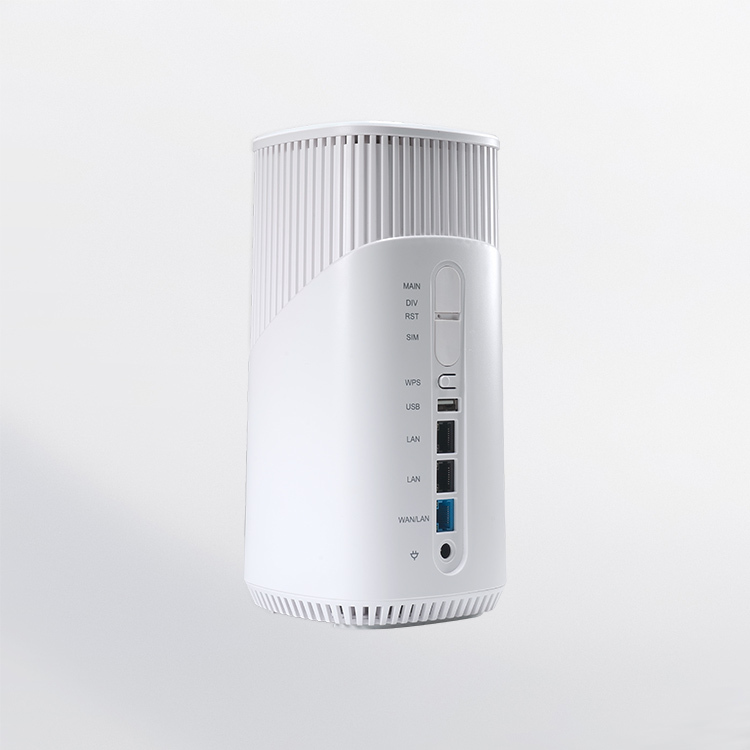

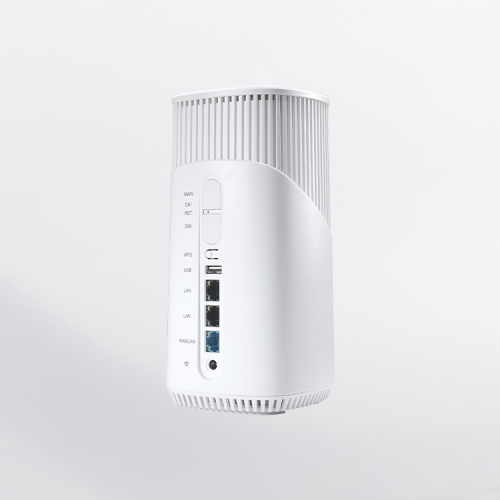

5G Indoor CPE XTC6251

○ Technical Parameter

Chip Platform

Qualcomm SDX62+MT7621A+MT7975DN+MT7905DAN

Network Mode

NSA&SA

Frequent Band

Sub-6 NSA:

n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79

Sub-6 SA:

n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79
LTE:B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/46(LAA)/48/66/71

UMTS/WCDMA: B1/2/4/5/8/19

Protocol Version

3GPP Release 16

MIMO for

Wireless

5G SUB6G+LTE Support  4*4MIMO

LTE+5G EN-DC

Peak Data Rate

5G NSA: 3.4 Gbps (DL)/550 Mbps (UL)

5G SA: 2.4 Gbps (DL)/900 Mbps (UL)

LTE: 1.6 Gbps (DL)/200 Mbps (UL)

DC-HSDPA: 42 Mbps (DL)

HSUPA: 5.76 Mbps (UL)

WCDMA: 384 kbps (DL)/384 kbps (UL)

Wi-Fi Standard

802.11a/b/g/n/ac/ax
2.4GHz  2*2MIMO 802.11ax: 575Mbps
5GHz  2*2MIMO  802.11ax: 1.2Gbps
DBS  can up to 1.775Gbps

Size

111x111x225mm

Power supply

12V/2A

Physical

Interface

1×GE WAN Port, 2×GE LAN Port, 1×USB 2.0 Port,1×NANO USIM card ,1×DC power

LED

Power indicator (blue), WiFi indicator (blue and green),

5G networking indicator (tricolor), 4G networking indicator (tricolor)

Button

Power, Reset, WPS

Characteristic

VPN Pass-Through Support (PPTP, L2TP & IPSec), Firewall, Local & Remote management
