4G LTE CAT6 Router - SmileMbb

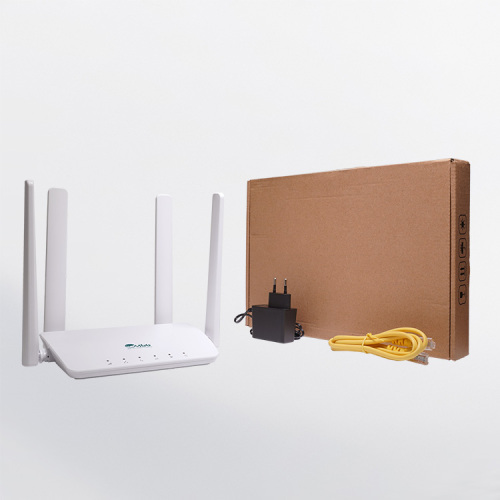

LTE CAT6 CPE XMC2841

Item No.: XMC2841
XMC2841, LTE CPE is developed based on several worldwide proven chipset solutions, integrated with the high technologies in LTE CAT6, WIFI 5 Hotspot, Ethernet WAN/LAN and Web-UI management. It supports TR069 remote management and FOTA.
  • ChipsetASR1828
  • Description Parameters Review
    Description

    XMC2841 | SmileMbb LTE CAT6 CPE

    Optimal Configuration | Complete Interface

    Complete Range of Interfaces

    Support VOLTE to Provide HD Voice/Video Communication

    External 4 Antennas With Strong Reception & High Stability

    Globally Recognized Chipset Solutions

    Both Card & Cable Access

    Parameters

    Technical parameter

    Chip Platform

    ASR1828

    Frequent Band

    XMC2841-EU:

    FDD LTE: B1/B3/B5/B7/B8/B20/B28

    TDD LTE: B38/B40/B41

    UMTS: B1/B5/B8

    2CA:

    B1 + B1/B3/B5/B7/B8/B20/B28;

    B3 + B3/B5/B7/B8/B20/B28;

    B7 + B5/B7/B8/B20/B28;

    B38 + B38, B40 + B40, B41 + B41

    Protocol Version

    4G: 3GPP R10 Cat6 + 3G: 3GPP R8 DL/UL

    Data Rate

    802.11b: Up to 11 Mbps

    802.11g: Up to 54 Mbps

    802.11n: Up to 300 Mbps

    802.11ac: Up to 866.7 Mbps

    WiFi Standard

    802.11a/b/g/n/ac, 20MHz/40MHz/80MHz

    Size

    150mm×105mm×30mm(L×W×H)

    Weight

    About 233g

    Power Supply

    DC 12V,1A

    Physical Interface

    2*GE+USB+USIM+RJ11+WiFi5

    LED

    POWER, WiFi, WAN/LAN, DATA ,RJ11,LTE

    Button

    Reset/WPS Key

    Characteristics

    VPN Protocol: IPSecVPN, PPTP VPN & L2TP VPN

    TR069/FOTA
