Designed for Carrier Tenders

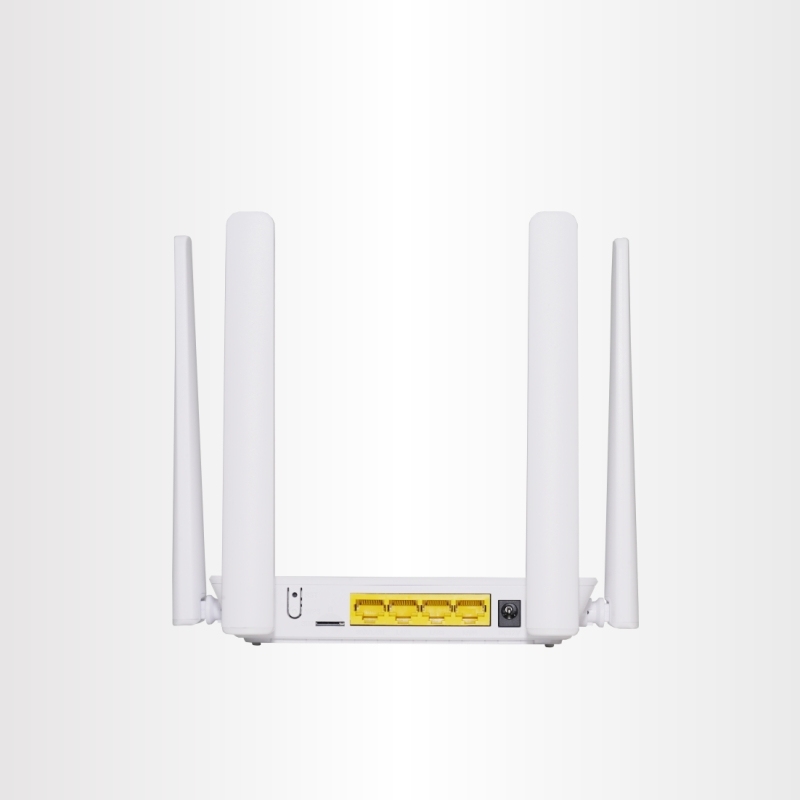

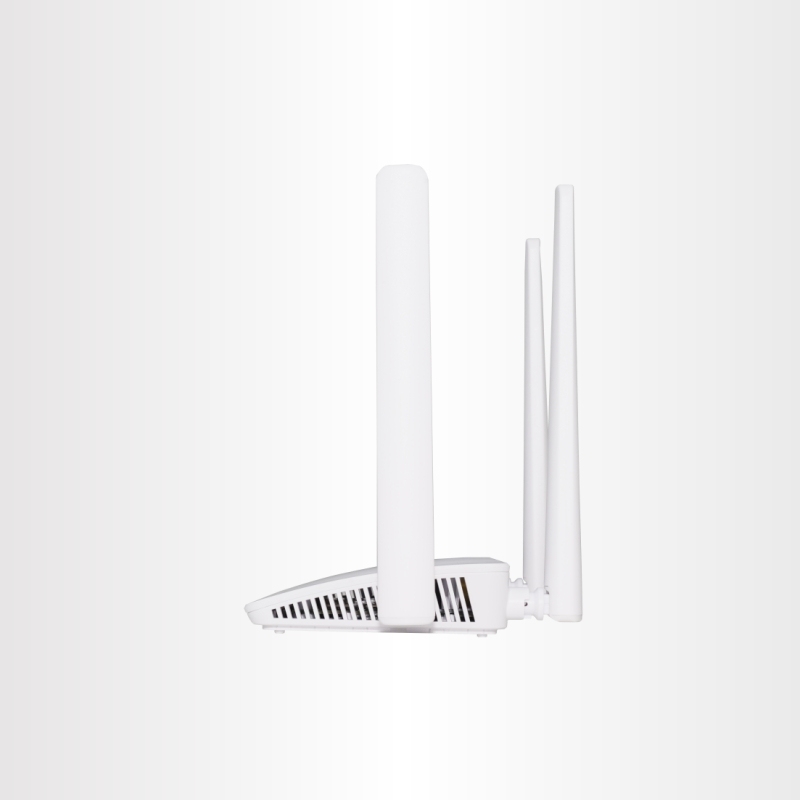

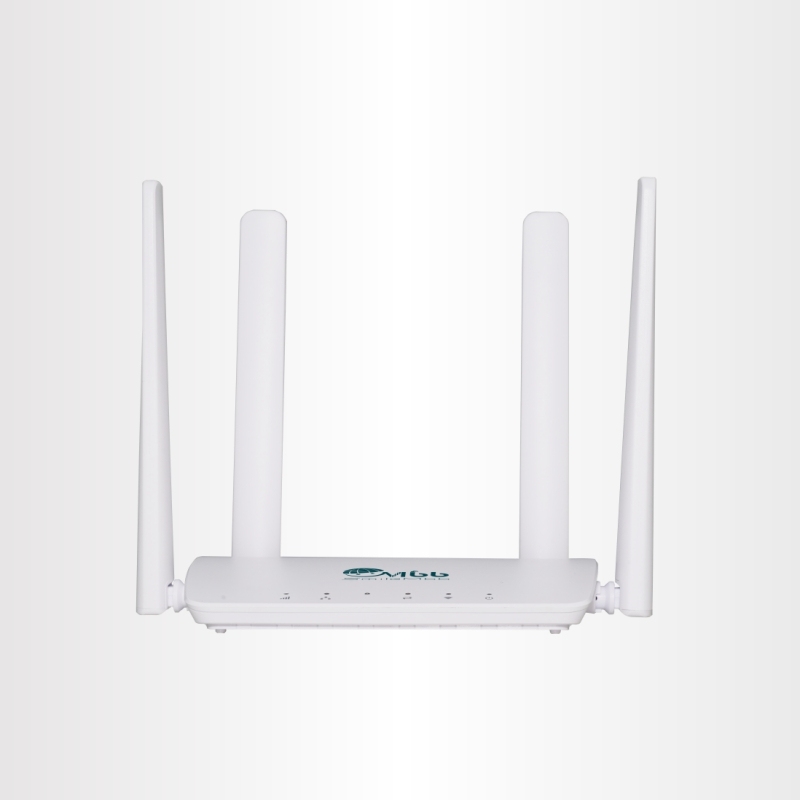

4 External Antennas for Unobstructed Networking
It provodes four 100Mbps Ethernet ports for simultaneous wired connection of 3~4 hosts.
4 External Antennas for Unobstructed Networking
2x2 MIMO technology with two external WiFi antennas for strong, stable signal that easily penetrates three walls.
4 External Antennas for Unobstructed Networking
2x2 MIMO technology with two external WiFi antennas for strong, stable signal that easily penetrates three walls.
Telecom-grade All-around Protection
High-performance firewall configuration with Port Filtering/ Port Mapping support.
Multi-application Scenarios
|
Technical Parameter |
||
|
Item |
XMC1843 |
XMC1843E |
|
Chipset |
ASR1803L |
ASR1803L (512Mbit+128Mbit) |
|
Frequency Bands |
XMC1843(e)-EU: FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 UMTS: B1/B5/B8 XMC1843(e)-AU： LTE-FDD: B1\B2\B3\B4\B5\B7\B8\B28\B66 LTE-TDD: B40 WCDMA: B1\B2\B4\B5\B8 |
|
|
Protocol |
4G: 3GPP R9 Cat4 + 3G: 3GPP R7 |
|
|
Data Rate |
FDD：DL/UL up to 150Mbps/50Mbps, TDD： DL/UL up to 110Mbps/10Mbps, DL/UL up to 21Mbps/5.76Mbps |
|
|
WiFi Chipset |
RTL8192FR |
ASR5803W |
|
WiFi Frequency |
2.4GHz, 1~13Channel |
|
|
Transmit Power |
17±2dBm @ 802.11b 15±2dBm @ 802.11g 14±2dBm @ 802.11n |
|
|
Receiver input level sensitivity |
l <-76dBm at the antenna port,QPSK,11Mbps,1024 Byte PSDU @ 802.11b l <-65dBm at the antenna port,64QAM,54Mbps,1024 Byte PSDU @ 802.11g l -64dBm at the antenna port,64QAM,65Mbps,4096 Byte PSDU @ 802.11n(HT20) l <-61dBm at the antenna port,64QAM,135Mbps,4096 Byte PSDU@ 802.11n(HT40) |
l <-76dBm at the antenna port, QPSK,11Mbps,1024 Byte PSDU @ 802.11b l <-65dBm at the antenna port, 64QAM,54Mbps,1024 Byte PSDU @ 802.11g l -64dBm at the antenna port, 64QAM, 65Mbps,4096 Byte PSDU@ 802.11n(HT20) |
|
WiFi Antenna |
External, 2 x 2 MIMO |
External, 1 x 1 SISO |
|
Protocol |
802.11b/g/n, 20MHz/40MHz |
802.11b/g/n |
|
Data Rate |
802.11b:Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 300 Mbps |
802.11b:Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 72.2 Mbps |
|
Dimension |
150*105*30mm |
|
|
Net weight |
230g |
About 233g |
|
Power adapter |
DC 12V,0.5A |
|
|
Interface |
4FE+USIM+WiFi4 4FE+USIM+WiFi |
|
|
Indicators |
POWER, WiFi, WAN/LAN, DATA , LTE |
|
|
Buttons |
Reset/WPS |
|
|
Featured Functions |
TR069/FOTA |
|
