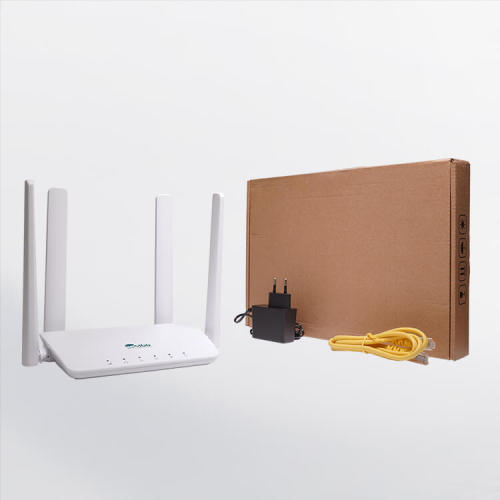

With 2 external WiFi antennas and 2 external LTE antennas, the wireless signal is stronger, the ability of penetration walls is better and the signal coverage range is wider through a precise and professional internal design of the antenna.
Adopt an intelligent performance chipset, High speed up to 300 Mbps, and stronger WiFi signal coverage! Enjoy the 4G Surfing Era!
Support TR069 Remote Management and FOTA, easy management and monitoring, O&M anytime and anywhere, support Window or Linux systems
Plug in the SIM card and connect your devices， You can get the WiFi signal anywhere and anytime.
WP2 | IPv4/IPv6 | Firewall | VPN Management | IP QoS
|
○ Hardware Parameter |
|
|
Dimension |
150mm×105mm×30mm(L×W×H) |
|
Net weight |
230g |
|
Operating condition |
Operating temp: -20°C ~ +45°C |
|
Storing condition |
Storing temp: -20°C ~ +60°C |
|
Power adapter |
DC 12V,1A |
|
Power supply |
≤12W |
|
Interface |
2FE+USB+USIM+WiFi4 |
|
Indicators |
6, For Status of POWER, WiFi, LAN, WAN,RJ11, LTE |
|
Buttons |
Reset / WPS |
|
○ LTE WAN Feature |
|
|
Chipset |
ASR1803 |
|
Frequency Bands |
l FDD LTE: B1/B3/B5/B7/B8/B20/B28a l TDD LTE: B38/B40/B41 l UMTS: B1/B5/B8 |
|
Bandwidth |
1.4/3/5/10/15/20 MHz, comply with 3GPP |
|
Modulation |
l DL: QPSK/16-QAM/64-QAM, comply with 3GPP l UL: QPSK/16-QAM, comply with 3GPP |
|
LTE Antenna |
MIMO: 2 * 2 LTE Antennas |
|
RF Power Level |
l LTE: Power Class 3 (23 dBm + 2.7/-3.7dB) l UMTS: Power Class 3 (24 dBm +1.7/-3.7dB) |
|
Data Rate |
l 4G: 3GPP R9 Cat4, l FDD：DL/UL up to 150Mbps/50Mbps, l TDD： DL/UL up to 110Mbps/10Mbps
3G: 3GPP R7 DL/UL up to 21Mbps/5.76Mbps |
|
○ WLAN Feature |
|
|
Chipset |
RTL8192ES |
|
Wi-Fi Frequency |
2.4GHz, 1~13Channel |
|
Transmit Power |
l 17±2dBm @ 802.11b l 15±2dBm @ 802.11g l 14±2dBm @ 802.11n |
|
Receiver input level sensitivity |
l <-76dBm at the antenna port,QPSK,11Mbps,1024 Byte PSDU @ 802.11b l <-65dBm at the antenna port,64QAM,54Mbps,1024 Byte PSDU @ 802.11g l -64dBm at the antenna port,64QAM,65Mbps,4096 Byte PSDU @ 802.11n(HT20) l <-61dBm at the antenna port,64QAM,135Mbps,4096 Byte [email protected] 802.11n(HT40) |
|
WiFi Antenna |
External, 2 x 2 MIMO |
|
Protocol |
802.11b/g/n, 20MHz/40MHz |
|
Data Rate |
l 802.11b:Up to 11 Mbps l 802.11g: Up to 54 Mbps l 802.11n: Up to 300 Mbps |
|
○ Function Data |
|
|
Interfaces |
l LAN/WAN: 1xRJ45 or 2* RJ45 with 10/100Mbps l CSFB / VoLTE Voice:RJ11 |
|
USIM |
Single, Standard SIM slot 4FF |
|
USB |
Type C I/F, Use for FW debug or ECM modem (USB RNDIS) |
|
WebUI |
l System:Connection l Status/Statistics/Device l Management/Power Mangement |
|
Language:Chinese/English/Español/Português, Customized |
|
|
Management: TR069/FOTA |
|
|
FW Upgrade: USB/FOTA |
|
|
Mobile Service |
l SMS Manager l Automatic APN matching according to USIM l Auto Data Connection l USSD Service optional l PIN/PUK Management l Network Mode Selection(3G/LTE/Auto) |
Interface of XMC1841
